EnergyPlus

EnergyPlus SCADA

SKU: EPL-SSUP

Web-based building management and HVAC monitoring software: live 3D graphics, dashboards, electrical single-line diagrams, metering & billing and alarm management in one interface.

Price on Request

● In Stock

Bu ürün için fiyat bilgisi almak üzere bizimle iletişime geçin.

Building management · HVAC · Energy

Your entire building, on one screen.

EnergyPlus SCADA lets you monitor and control your whole facility — from air handling units to the boiler room, from power distribution to tenant billing — on live, realistic 3D screens. It is web based: the same screen in the control room, the office or on a tablet.

Explore the features
479
3D HVAC symbols
68
ready equipment templates
5
page types
19
dashboard card types
7
field protocols

Five page types, one interface

The right screen for every job: live plant graphics, management dashboards, electrical single-line diagrams, metering and billing, and alarm views — all in the same page tree, under the same permission system.

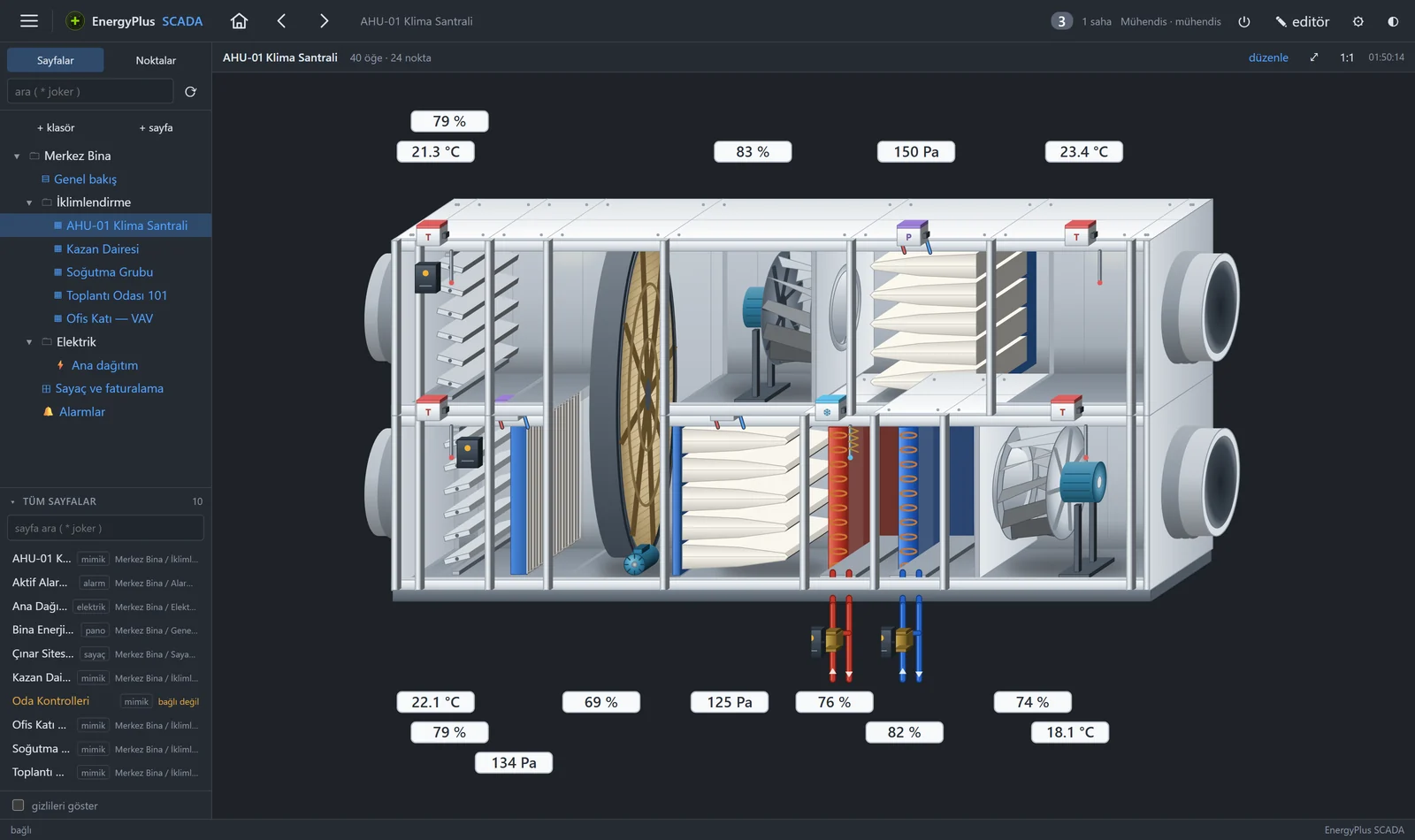

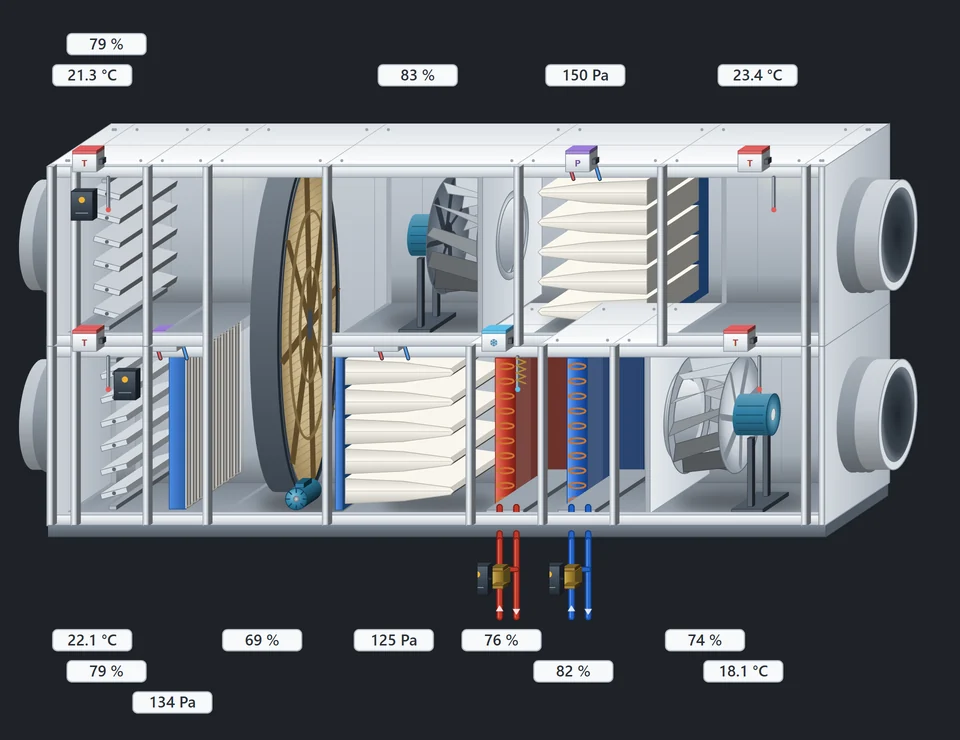

Live plant graphics

  • Fans spin, valves open, filters warn when dirty: equipment state is visible in the picture.
  • Values refresh every 250 ms; an unbound point is hidden instead of leaving an empty box.
  • Add rules: change colour, hide or blink when a threshold is crossed.
  • One page serves many devices: a single AHU screen shows all ten of your units.

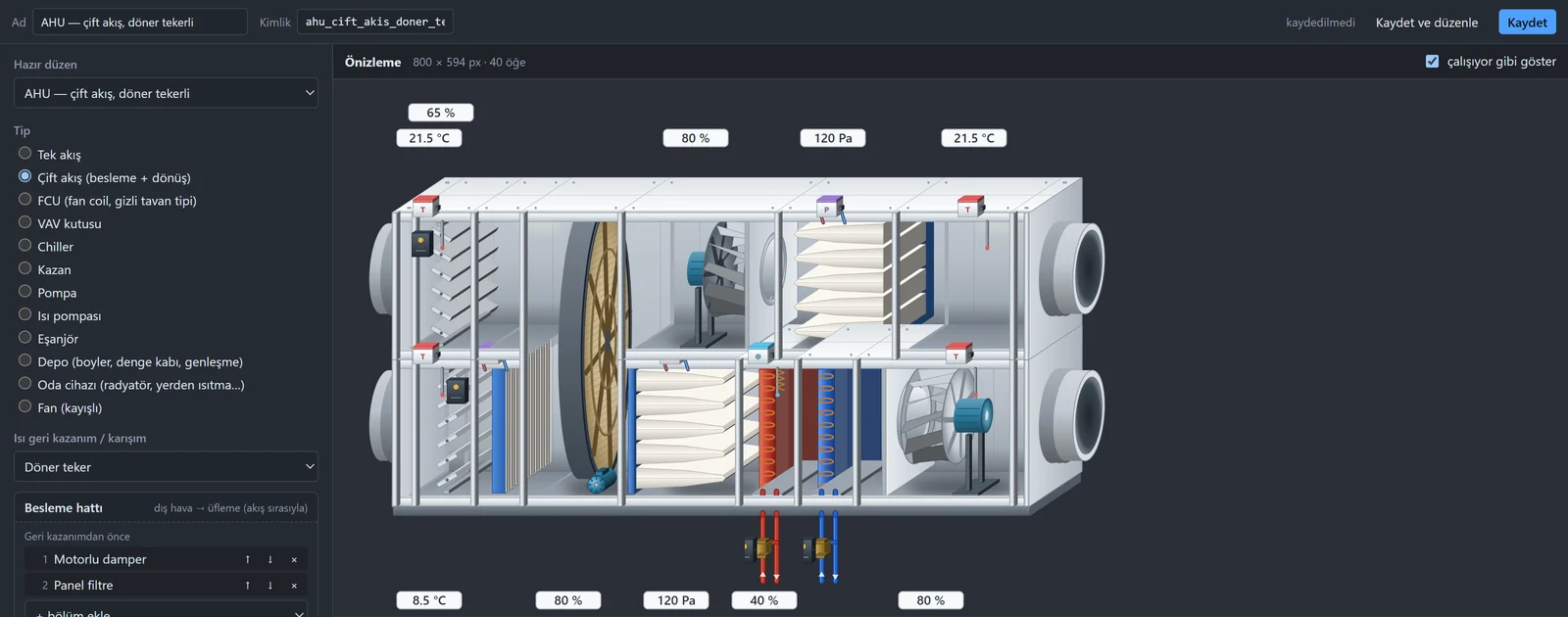

HVAC builder

Build your AHU screen in minutes

Pick your air handling unit section by section; the builder produces the 3D drawing, the sensors and the point list for you. No drawing tool, no pixel pushing.

  • 12 equipment types: single and dual duct AHU, FCU, VAV, chiller, boiler, pump, heat pump, heat exchanger, storage tanks, room units and fans.
  • Add sections in airflow order: damper, filter, coils, humidifier, fan, silencer; heat recovery as rotary wheel, plate exchanger, mixing damper or adiabatic wheel.
  • The point list writes itself: one parameter for every sensor, status and command.
  • Live preview with “show as running”; save it and it becomes a template.
  • Bind by name: device points are recognised by their names and matched in one click.

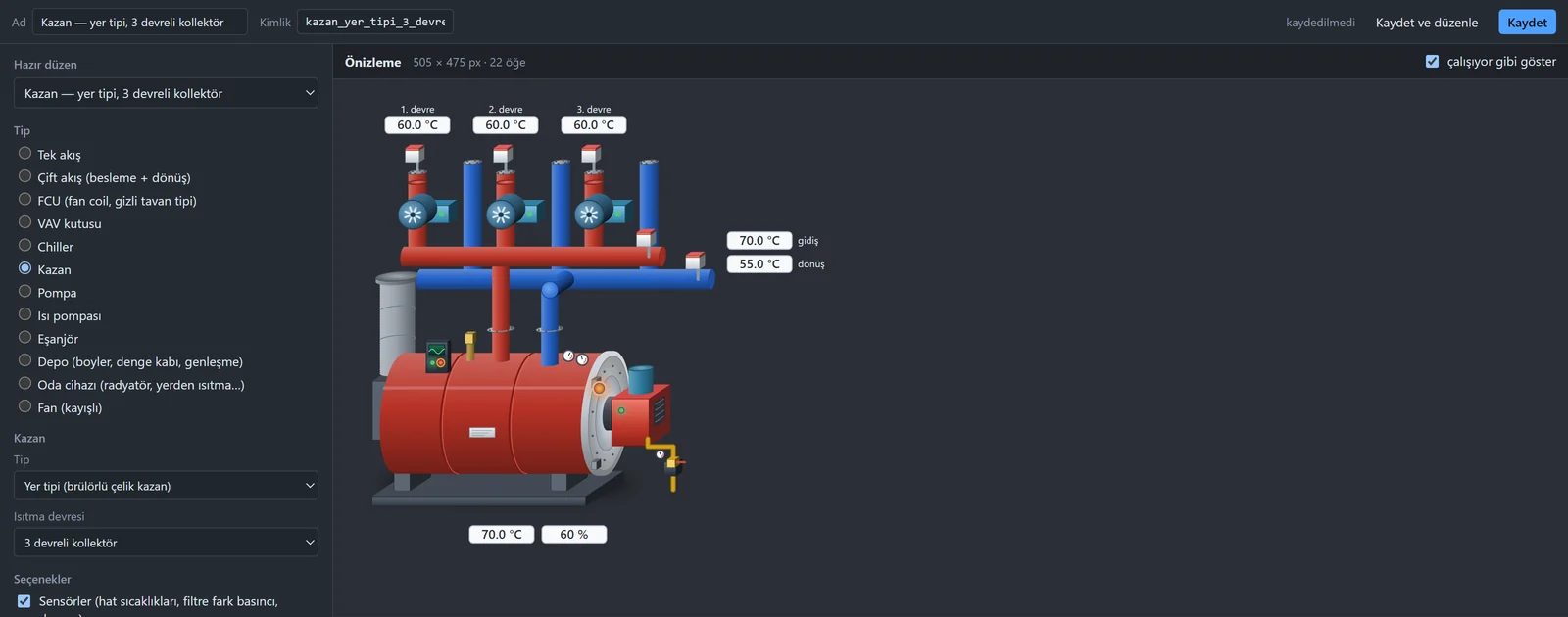

Boiler — 2, 3 or 4 circuit header with circuit pumps

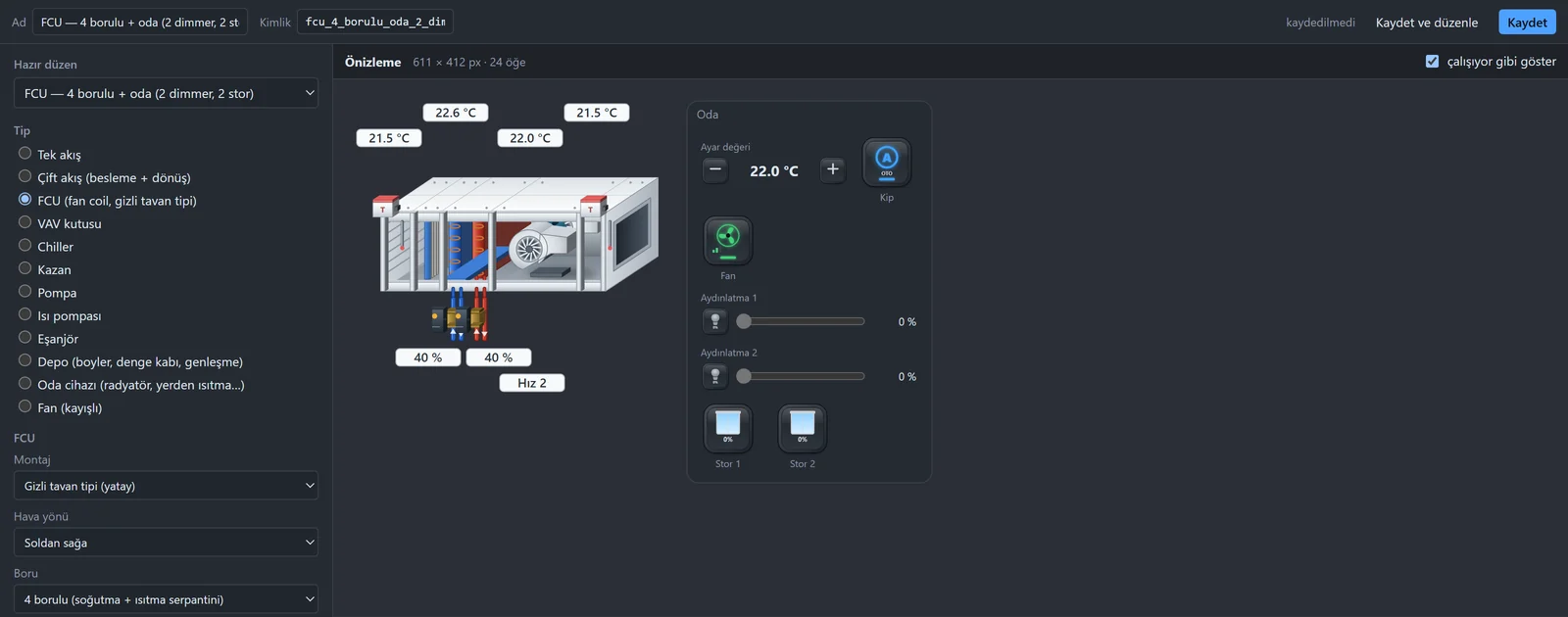

FCU — with a room panel: setpoint, mode, fan, dimmers, blinds

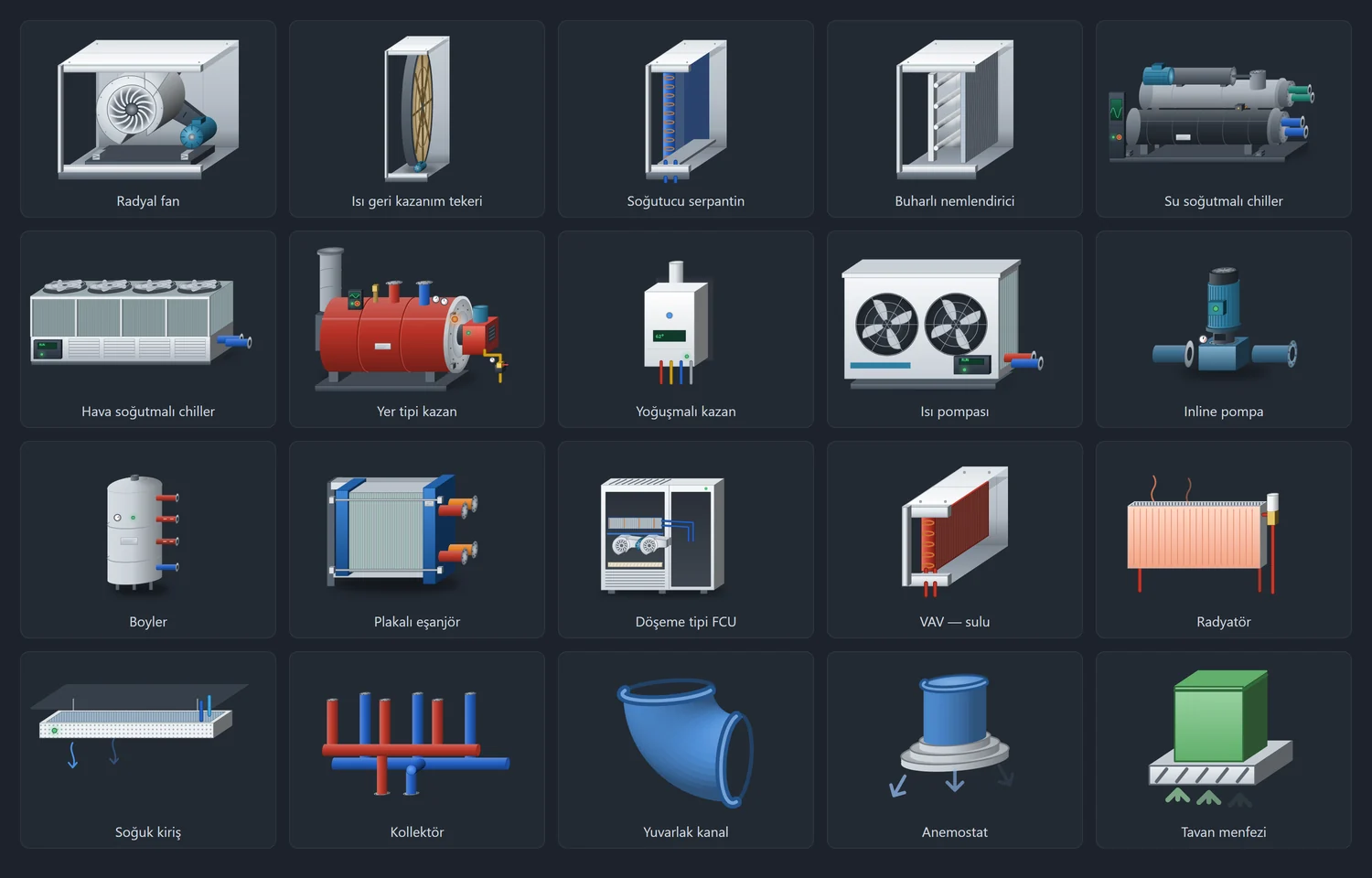

Graphics library

A realistic 3D equipment library

The 479-piece EnergyPlus HVAC library is drawn in one consistent cut-away style, so operators see what is inside the equipment. Over 4,800 symbols in total.

  • Pipes, ducts, round ducts, valves, pumps and diffusers snap end to end; round ducts match the AHU outlet diameter.
  • Straight pieces in 1, 2 and 4 cell lengths: long runs in a single piece.
  • Live state frames: running pumps, firing burners, open diffusers, moving air.
  • Add your own SVG symbols, merge and split them.

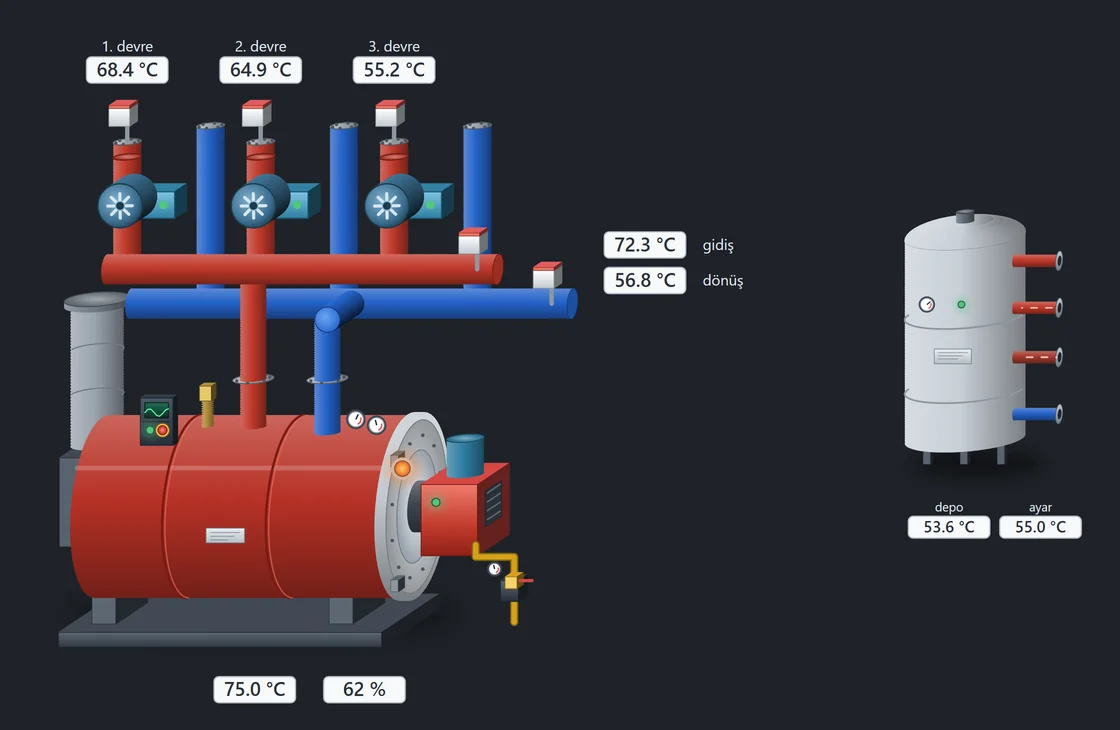

Boiler room

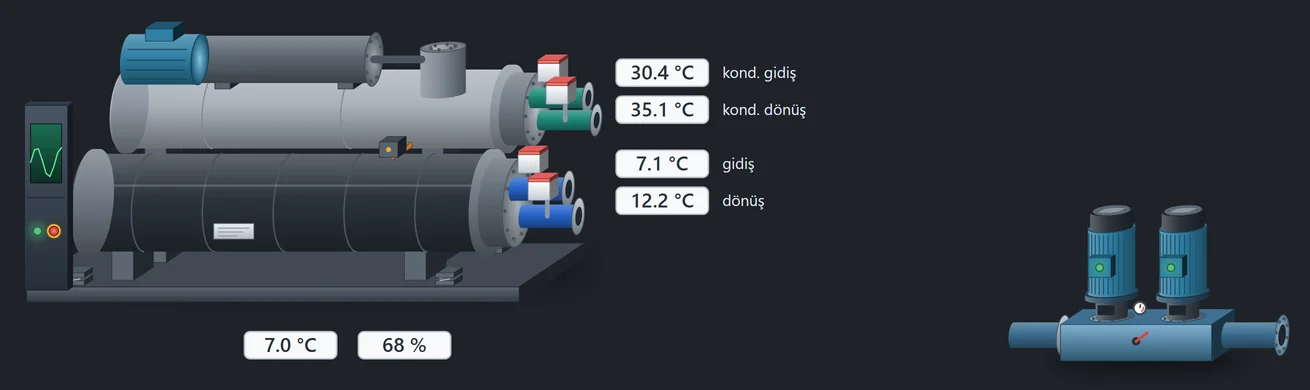

Chiller plant

Room controls

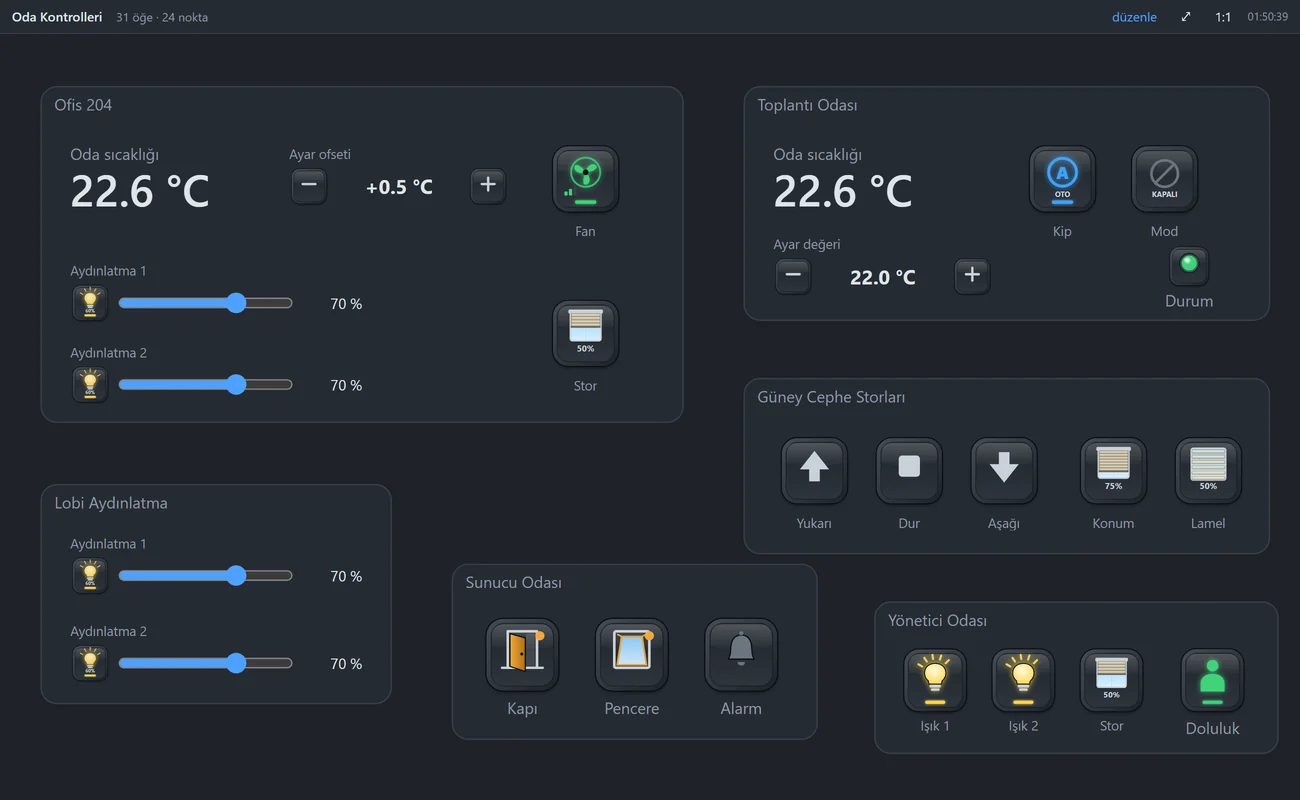

Run the room from the screen

  • Setpoint and offset, HVAC mode, fan speed.
  • Dimmable and on/off lighting, blind position and slat angle.
  • Door, window, occupancy and alarm status.
  • Dark and light themes; ready panels for hotel rooms, offices and meeting rooms.

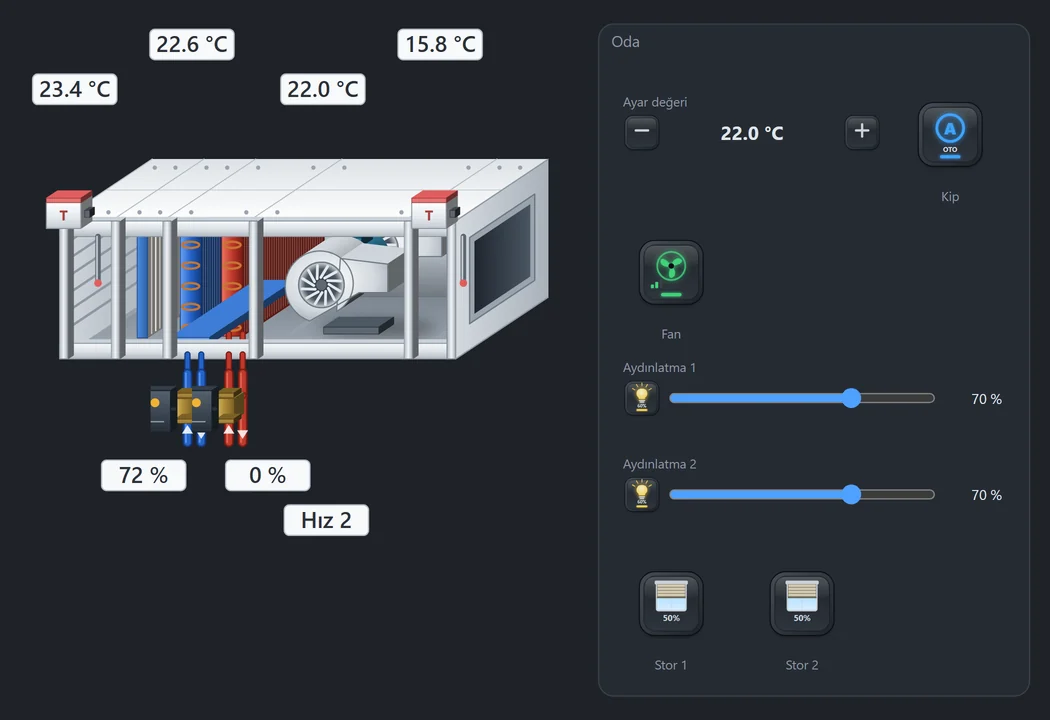

Meeting room — 4-pipe FCU with room panel

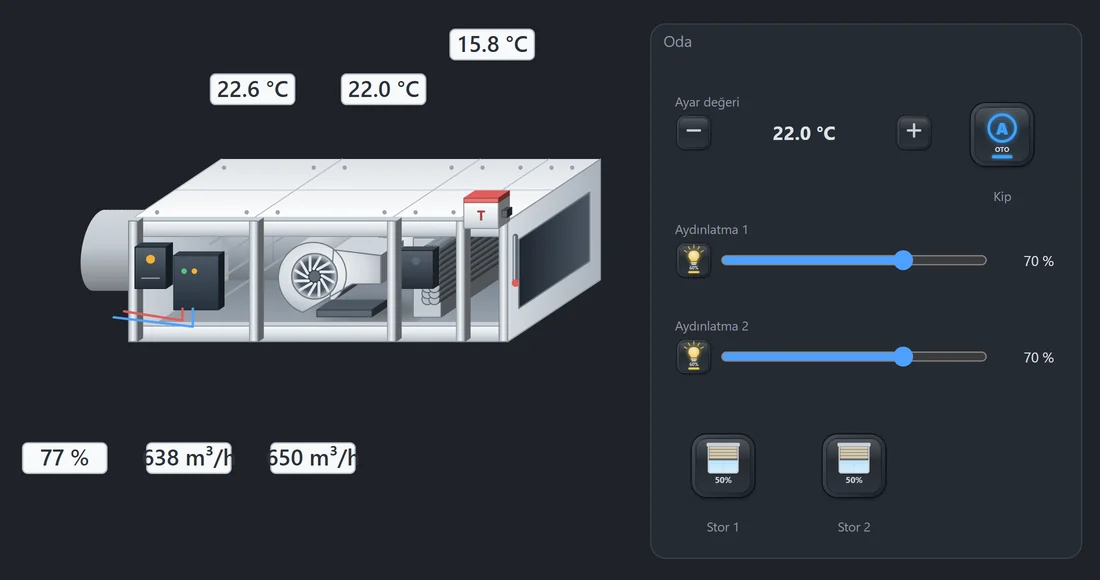

Office floor — fan-powered VAV, airflow and room control

Editor

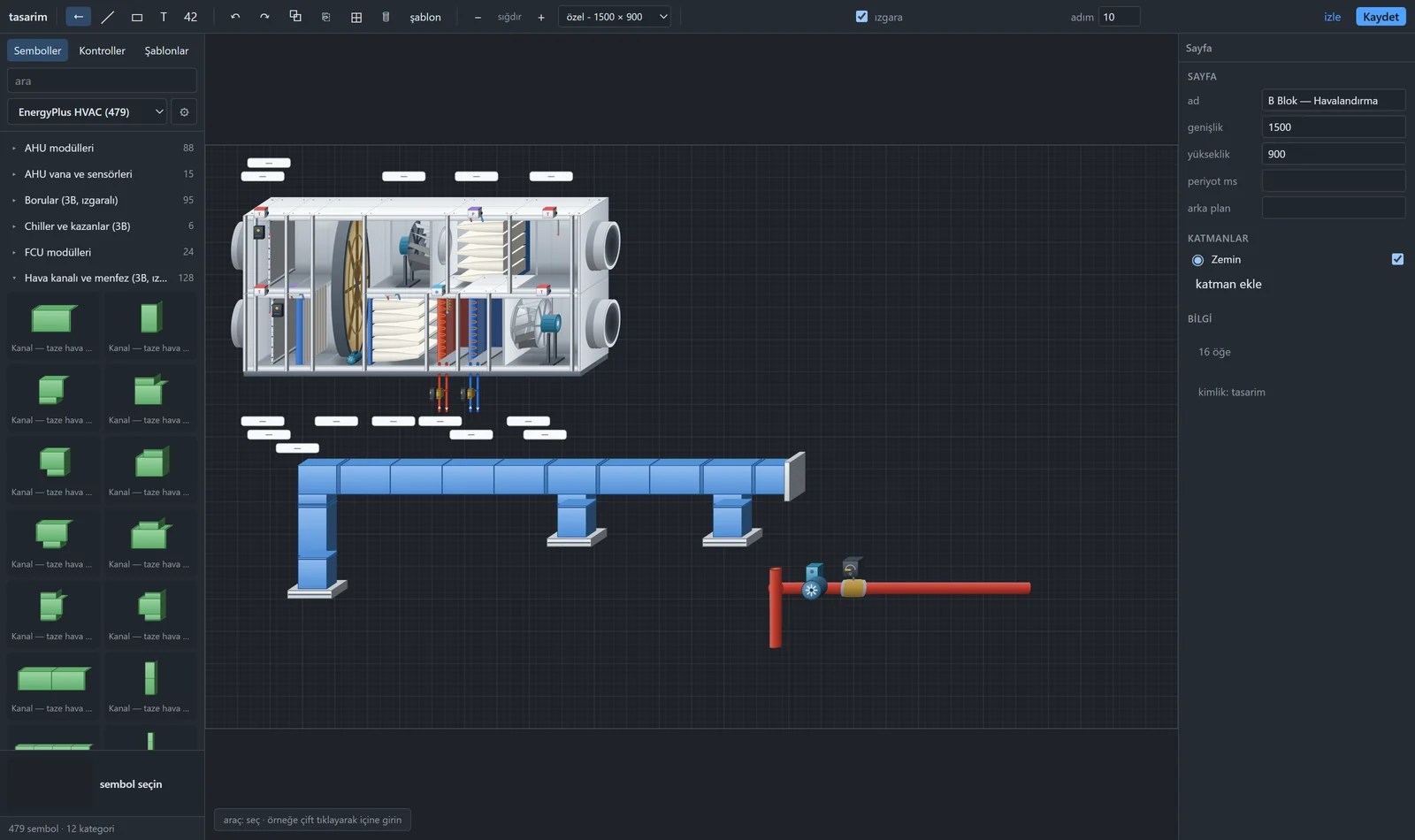

Drag and drop, no code

  • Drag from the palette, bind to a point, save. Operators see the change immediately.
  • Templates and instances: fix a template once and every copy on site follows.
  • Layers, alignment, undo/redo, copy/duplicate; wildcard search everywhere.
  • Controls: on/off, setpoints, speed steps, schedules; write access depends on role.

Platform

Field ready, secure, scalable

The SCADA takes its field data from EnergyPlus Worker. One central server brings many sites together in a single interface.

Web based

Browser, tablet or a desktop shell in kiosk mode. Nothing to install on clients.

Role and page permissions

Administrator, engineer, operator; view and write rights per page and folder.

Audit trail

Who wrote what to which point, and when — stored in the database.

TLS encryption

Certificate generation, import and fingerprint pinning from the settings screen.

Scheduled, encrypted backup

Pages, symbols, templates, permissions and settings in a single file.

Verified updates

New versions from inside the app; nothing installs until its SHA-256 checks out.

Modbus TCPModbus RTUBACnet/IPBACnet MS/TPKNX IPSedona (SOX)M-BusMQTT

Field protocols via EnergyPlus Worker. Availability depends on the licence.

Let's bring your facility to the screen

Tell us about your project and we'll show you a demo built with your own equipment.

Screenshots show sample data.

Description
EnergyPlus SCADA lets you monitor and control your whole facility — from air handling units to the boiler room, from power distribution to tenant billing — on live, realistic 3D screens. It is web based: the same screen in the control room, the office or on a tablet. KEY FEATURES • 479-piece 3D HVAC symbol library (over 4,800 symbols in total) • 68 ready equipment templates, 19 dashboard card types • 5 page types: graphics, dashboard, electrical single-line, metering & billing, alarms • HVAC builder: builds AHU, FCU, VAV, chiller, boiler and other screens across 12 equipment types in minutes • Drag-and-drop editor, no code; fix a template once and every copy on site follows • Alarm notifications by e-mail, WhatsApp and Mattermost LIVE PLANT GRAPHICS • Fans spin, valves open, filters warn when dirty: equipment state is visible in the picture • Values refresh every 250 ms; an unbound point is hidden instead of leaving an empty box • Rules: change colour, hide or blink when a threshold is crossed • One page serves many devices: a single AHU screen shows all ten of your units MANAGEMENT DASHBOARDS • 19 card types: value, status lamp, gauge, trend chart, pie and bar comparison, statistics, report, carbon footprint, camera and command cards • A responsive grid that reflows: the same dashboard works on a video wall and on a tablet • Average, minimum, maximum and totals from history; energy use broken down by category ELECTRICAL SINGLE-LINE DIAGRAM • You don't draw it, you describe it: source → busbar → feeder; the diagram draws itself • Ready example diagrams with transformer, generator, UPS, power-factor correction, motors and solar PV (on-grid, hybrid, off-grid) • Power analyser readings on the diagram: voltage, current, active/reactive power, power factor, frequency, THD • Breaker state shown in colour; energised paths are visible at a glance METERING AND BILLING • Tenants, meters and billing periods for residential sites, malls and office buildings • Allocation methods: metered use, floor area (m²), equal share, runtime × capacity for VRF, and mixed (metered + area) for central heating; common areas and losses included • VAT breakdown, invoice numbering and per-tenant A4/A5 invoice printouts • Closed periods are frozen: an issued invoice never changes afterwards ALARM MANAGEMENT • Alarm classes: colour, priority, acknowledge and close rules, mandatory comments • A fault that comes and goes overnight isn't lost: it stays listed until someone closes it • Acknowledge and close notes, full history; critical alarms counted in the top bar ROOM CONTROLS • Setpoint and offset, HVAC mode, fan speed • Dimmable and on/off lighting, blind position and slat angle • Door, window, occupancy and alarm status; ready panels for hotel rooms, offices and meeting rooms PLATFORM AND SECURITY • Web based: browser, tablet or a desktop shell in kiosk mode; nothing to install on clients • Field data via EnergyPlus Worker; one central server brings many sites together in a single interface • Role and page permissions (administrator, engineer, operator), audit trail • TLS encryption, scheduled encrypted backup, updates verified with SHA-256 FIELD PROTOCOLS Modbus TCP, Modbus RTU, BACnet/IP, BACnet MS/TP, KNX IP, Sedona (SOX), M-Bus, MQTT — via EnergyPlus Worker; availability depends on the licence. LICENCE AND DEMO The licence scope is defined per project; contact us for pricing and for a demo built with your own equipment.
