EnergyPlus SCADA

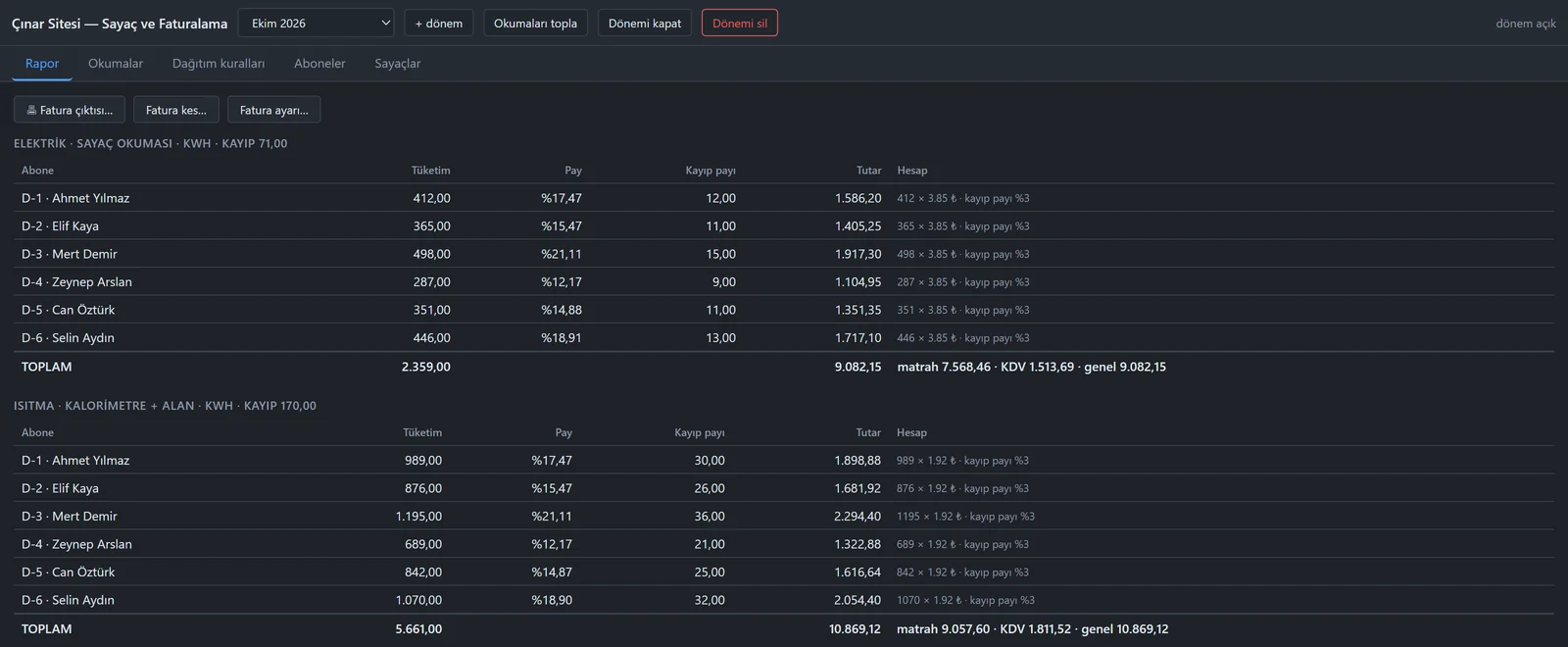

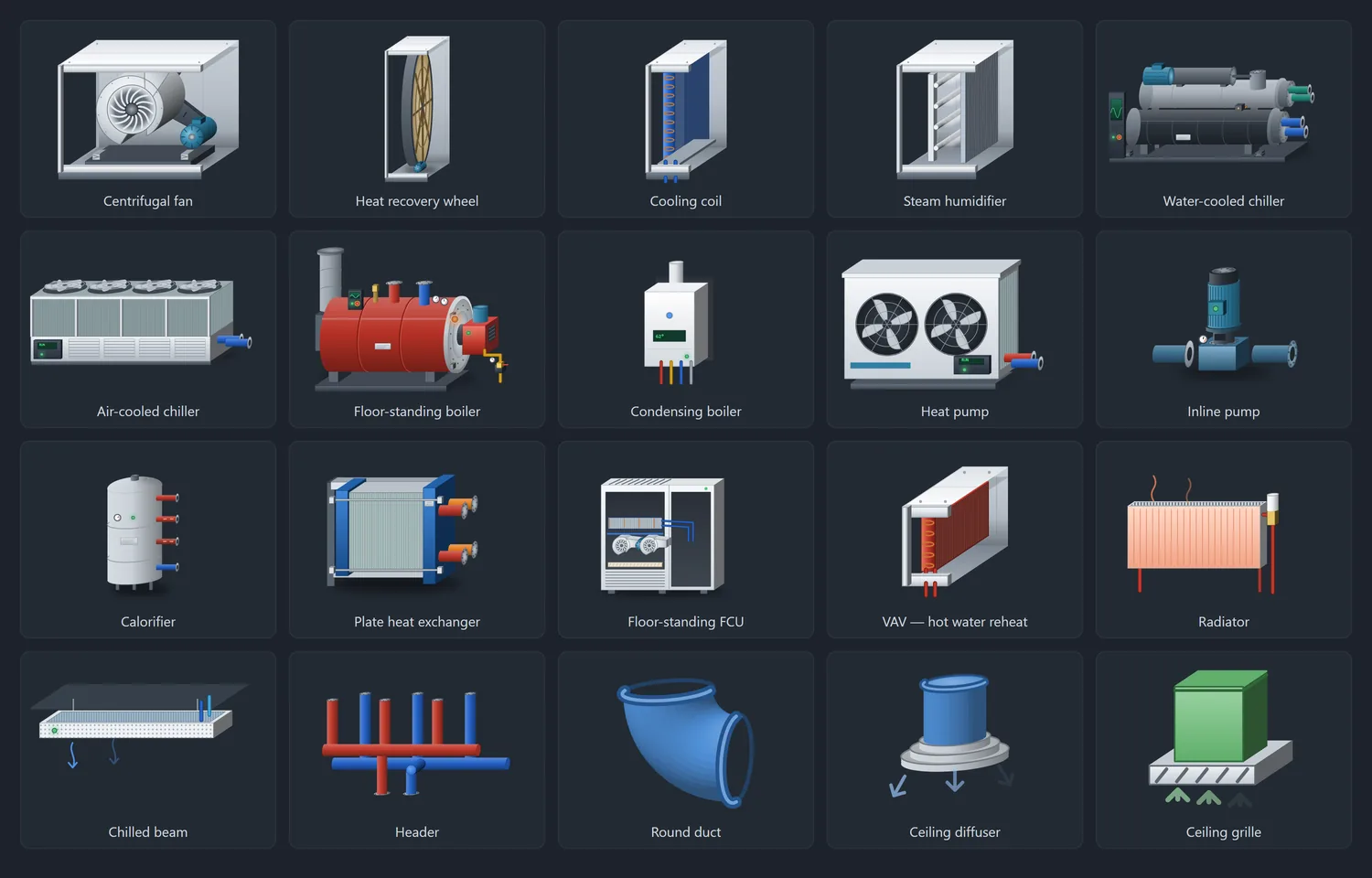

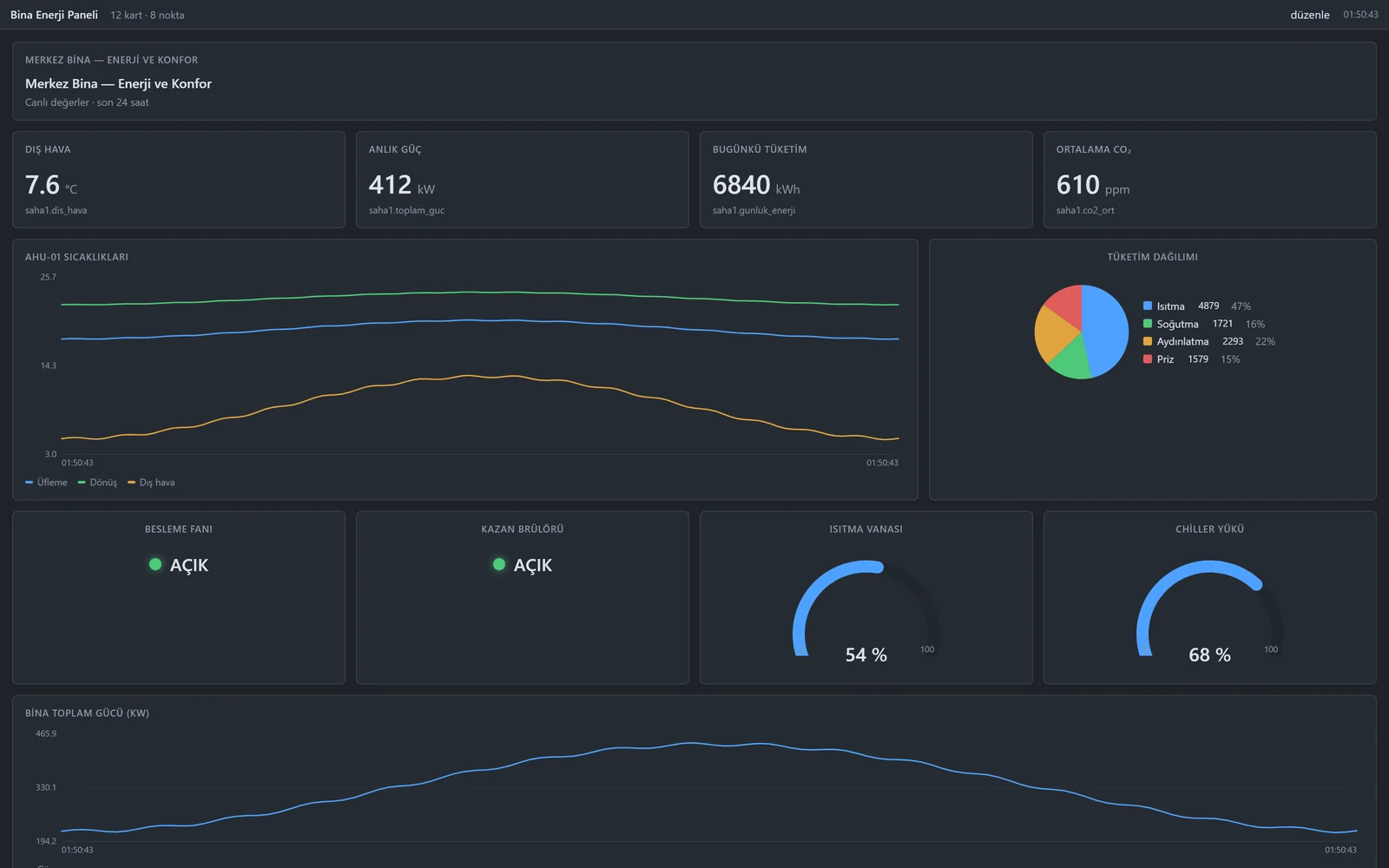

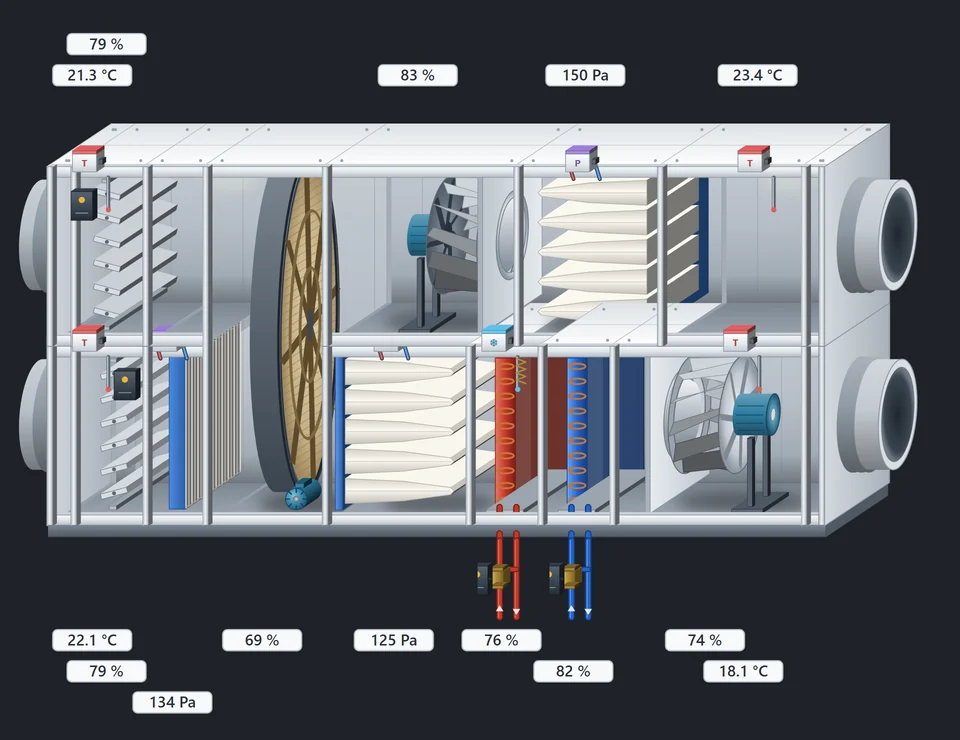

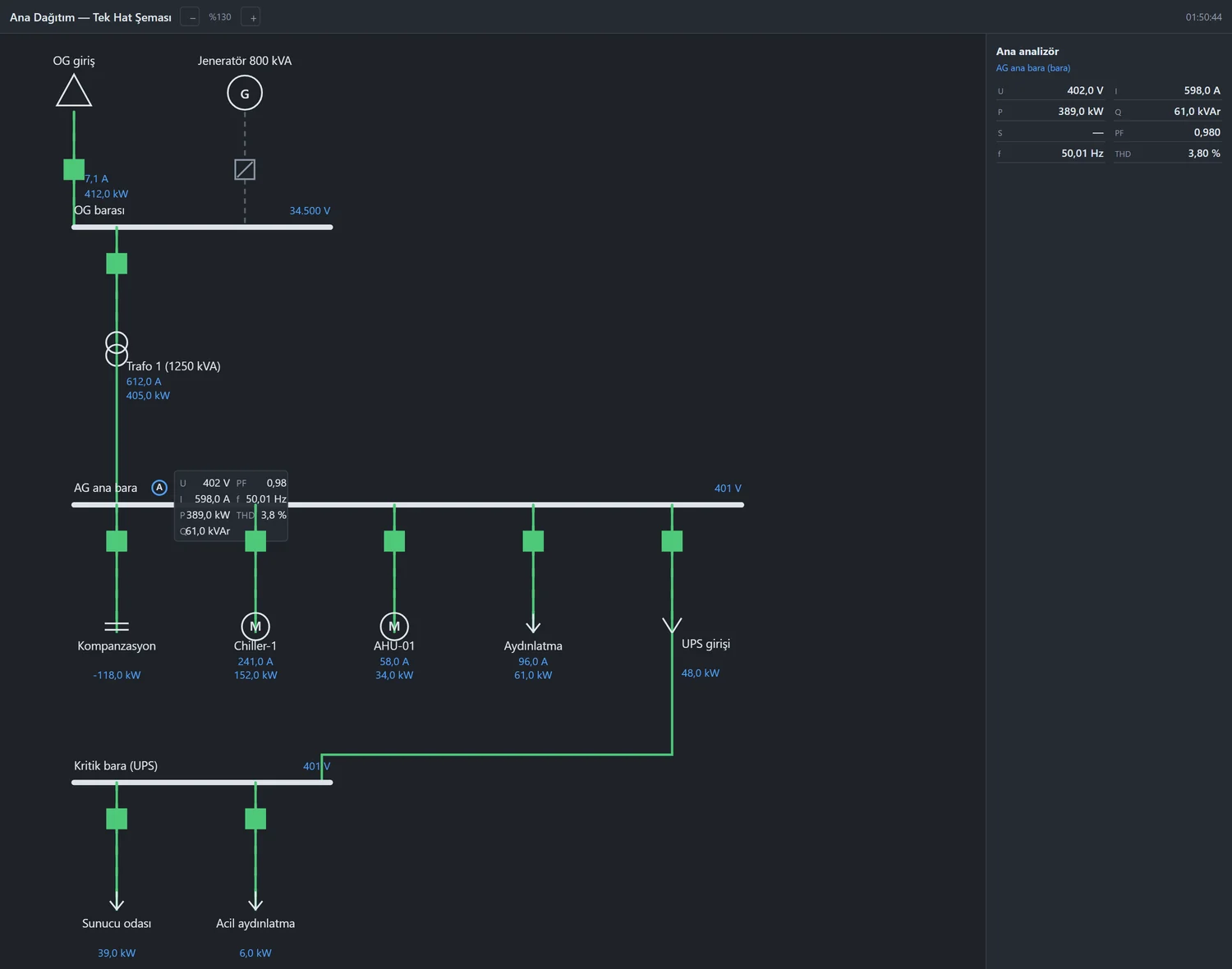

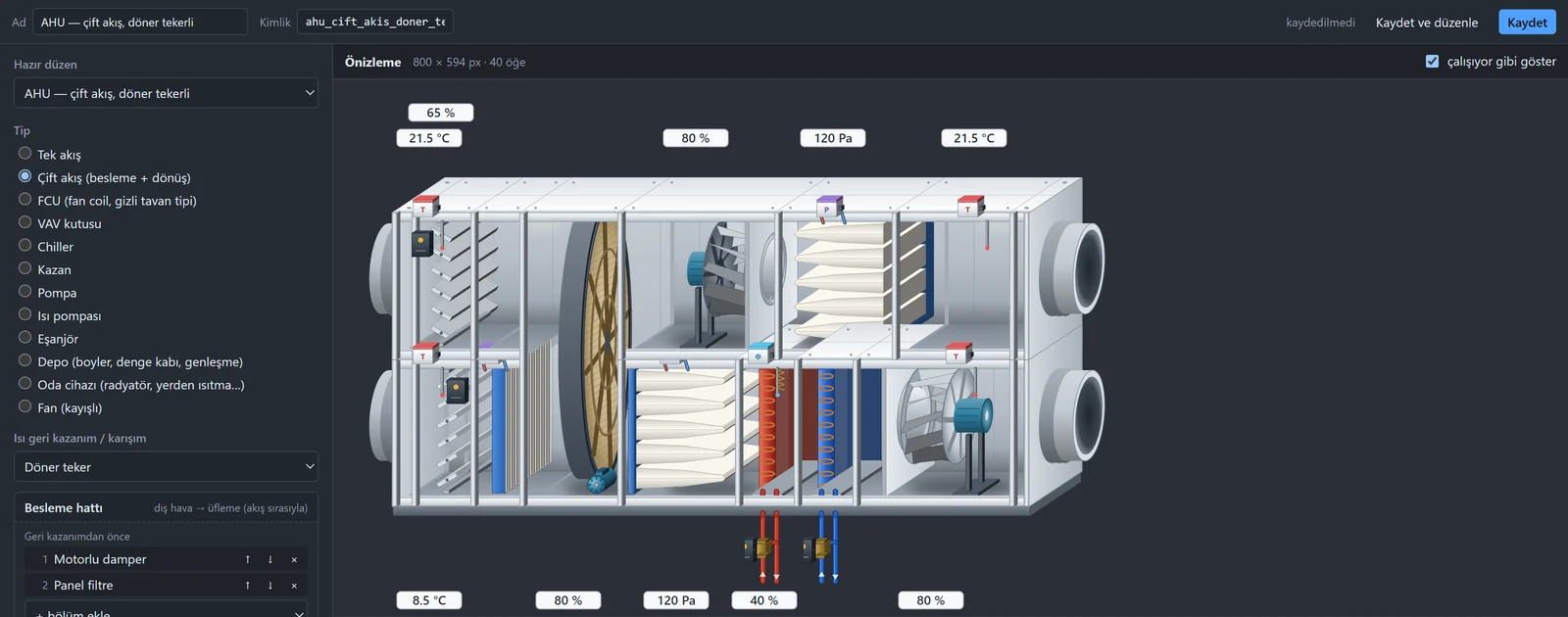

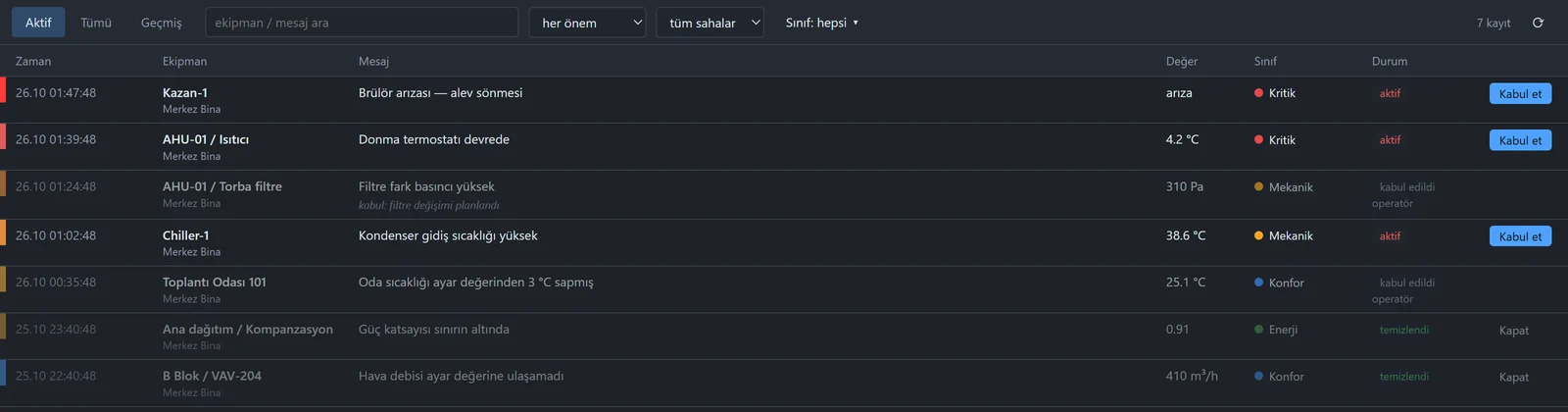

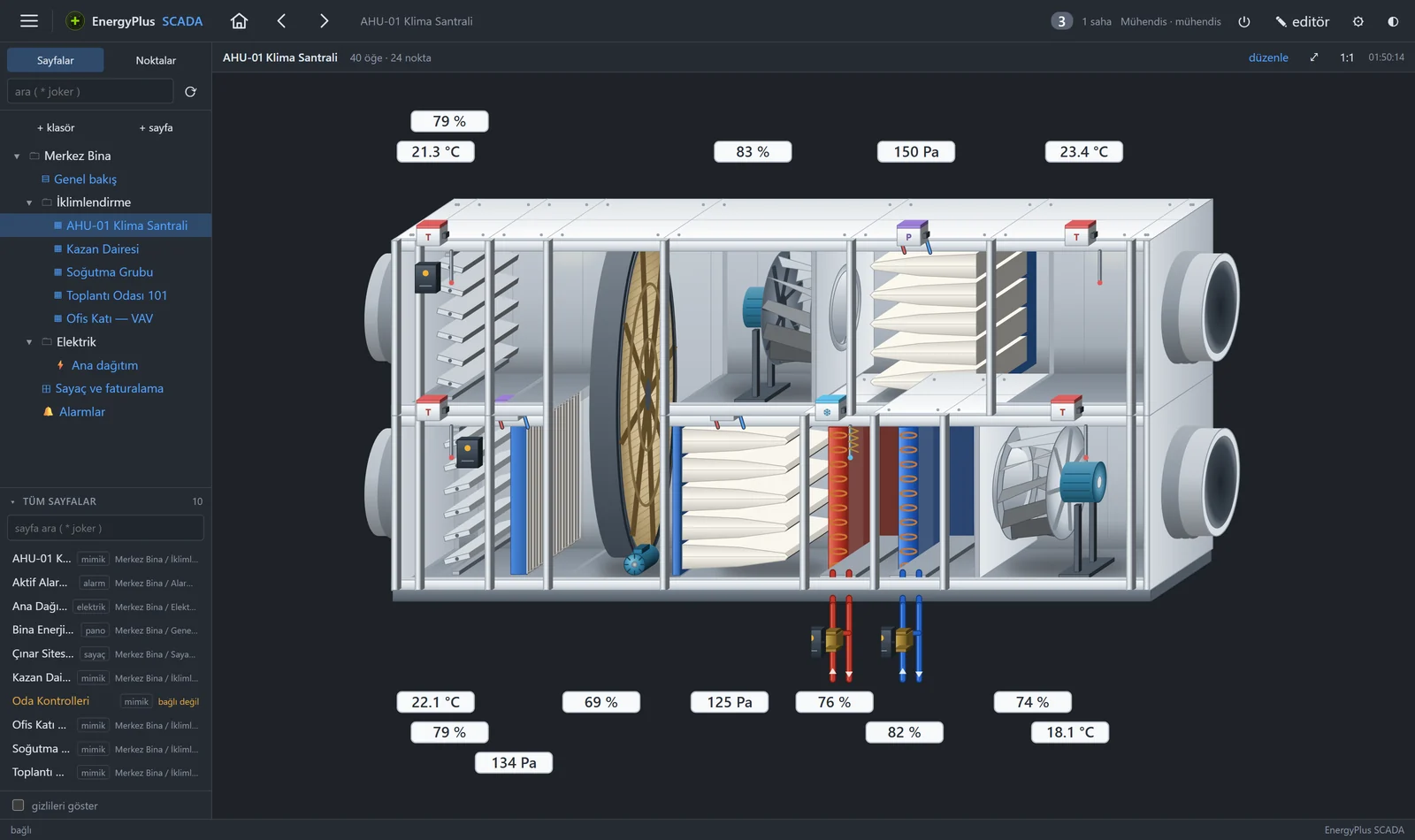

EnergyPlus SCADA lets you monitor and control your whole facility — from air handling units to the boiler room, from power distribution to tenant billing — on live, realistic 3D screens. It is web based: the same screen in the control room, the office or on a tablet. KEY FEATURES • 479-piece 3D HVAC symbol library (over 4,800 symbols in total) • 68 ready equipment templates, 19 dashboard card types • 5 page types: graphics, dashboard, electrical single-line, metering & billing, alarms • HVAC builder: builds AHU, FCU, VAV, chiller, boiler and other screens across 12 equipment types in minutes • Drag-and-drop editor, no code; fix a template once and every copy on site follows • Alarm notifications by e-mail, WhatsApp and Mattermost LIVE PLANT GRAPHICS • Fans spin, valves open, filters warn when dirty: equipment state is visible in the picture • Values refresh every 250 ms; an unbound point is hidden instead of leaving an empty box • Rules: change colour, hide or blink when a threshold is crossed • One page serves many devices: a single AHU screen shows all ten of your units MANAGEMENT DASHBOARDS • 19 card types: value, status lamp, gauge, trend chart, pie and bar comparison, statistics, report, carbon footprint, camera and command cards • A responsive grid that reflows: the same dashboard works on a video wall and on a tablet • Average, minimum, maximum and totals from history; energy use broken down by category ELECTRICAL SINGLE-LINE DIAGRAM • You don't draw it, you describe it: source → busbar → feeder; the diagram draws itself • Ready example diagrams with transformer, generator, UPS, power-factor correction, motors and solar PV (on-grid, hybrid, off-grid) • Power analyser readings on the diagram: voltage, current, active/reactive power, power factor, frequency, THD • Breaker state shown in colour; energised paths are visible at a glance METERING AND BILLING • Tenants, meters and billing periods for residential sites, malls and office buildings • Allocation methods: metered use, floor area (m²), equal share, runtime × capacity for VRF, and mixed (metered + area) for central heating; common areas and losses included • VAT breakdown, invoice numbering and per-tenant A4/A5 invoice printouts • Closed periods are frozen: an issued invoice never changes afterwards ALARM MANAGEMENT • Alarm classes: colour, priority, acknowledge and close rules, mandatory comments • A fault that comes and goes overnight isn't lost: it stays listed until someone closes it • Acknowledge and close notes, full history; critical alarms counted in the top bar ROOM CONTROLS • Setpoint and offset, HVAC mode, fan speed • Dimmable and on/off lighting, blind position and slat angle • Door, window, occupancy and alarm status; ready panels for hotel rooms, offices and meeting rooms PLATFORM AND SECURITY • Web based: browser, tablet or a desktop shell in kiosk mode; nothing to install on clients • Field data via EnergyPlus Worker; one central server brings many sites together in a single interface • Role and page permissions (administrator, engineer, operator), audit trail • TLS encryption, scheduled encrypted backup, updates verified with SHA-256 FIELD PROTOCOLS Modbus TCP, Modbus RTU, BACnet/IP, BACnet MS/TP, KNXnet/IP, Sedona (SOX), M-Bus, MQTT — via EnergyPlus Worker; availability depends on the licence. LICENCE AND DEMO The licence scope is defined per project; contact us for pricing and for a demo built with your own equipment.
